Radial non-adjustable grille 1-RN-30-30
Radial non-adjustable grille 1-RN-30-30 - Image 2
Radial non-adjustable grille 1-RN-30-30 - Image 3
Radial non-adjustable grille 1-RN-30-30 - Image 4

Radial non-adjustable grille 1-RN-30-30

Radial grilles are used for installation in round spiral-wound pipes and are intended for supplying or exhausting air by ventilation, air conditioning or air heating systems.

SKU: ARPD0317

Assignment

Radial grilles are used for installation in round spiral-wound pipes and are intended for supplying or exhausting air by ventilation, air conditioning or air heating systems.

Design and materials

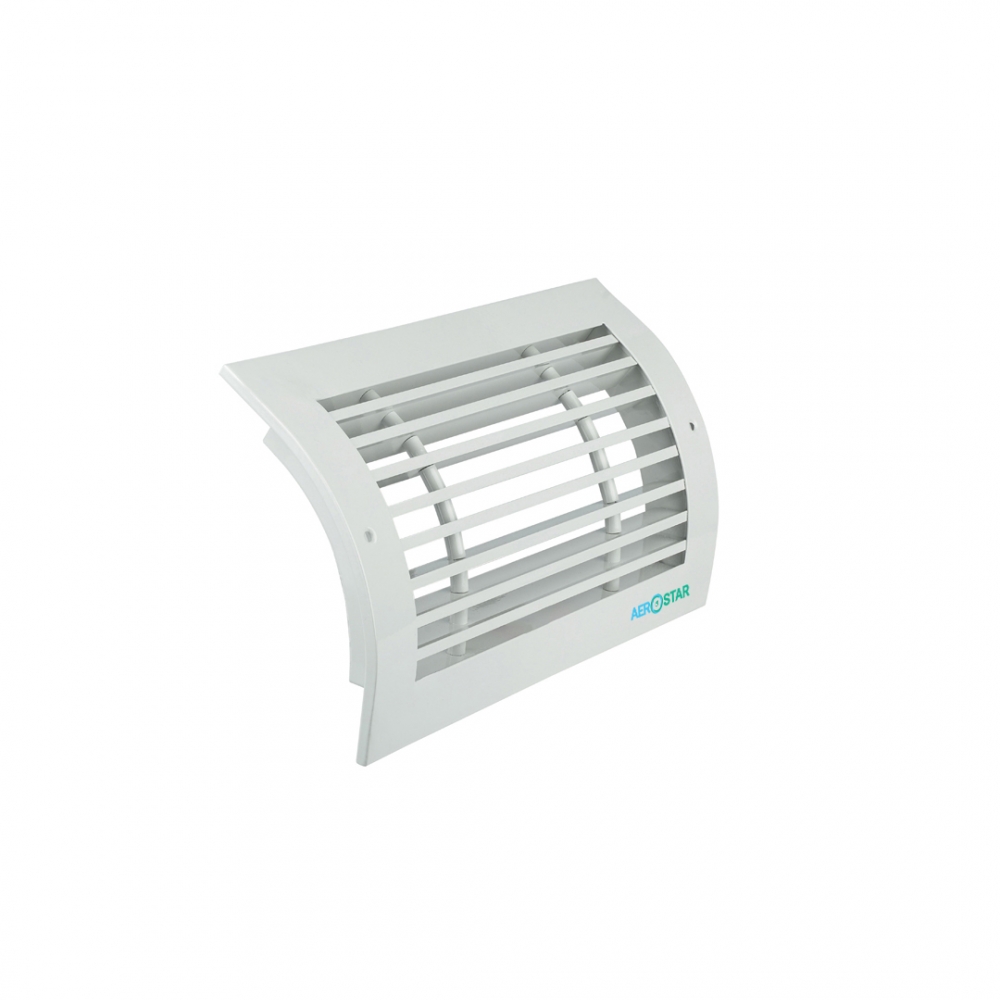

1-РНР-30-30 – Single-row non-adjustable grilles with a 0° inclination angle of the vanes. These grilles are made of high-quality aluminium profiles in the form of a frame and consist of horizontal fixed vanes

The grille design includes only screw mounting possibility (mounting holes are countersunk on the front flange). The profiles are coated with heat-resistant powder paint, which provides reliable protection against negative environmental factors and prevents premature product wear. The standard colour of painting is white, but at the customer request it is possible to paint in another color according to the RAL catalogue.

Modifications

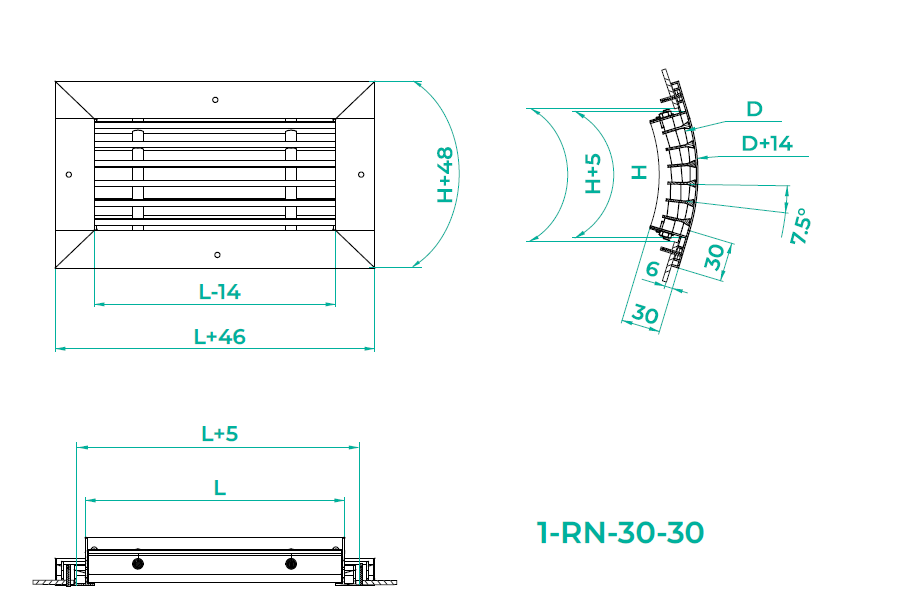

Fitting sizes LxH with 5mm steps and pipe diameter D.

Minimal pipe diameter D=150, for smaller diameter you can use radial grille with galvanized frame (1-PHP-30-30-OTS).

Example of order and mounting

1-РНР-30-30* D=200 (RAL 9016) 300x200h – screw mounting (mounting holes are located on the front side of the grille frame), pipe diameter 200mm, white colour.
