Flush-mounted grille LH-15-30-40, LH-30-40

This type of grilles is used in objects with higher aesthetic requirements, but with preservation of technical parameters. They are used in supply and exhaust ventilation and in any air conditioning systems. Designed for installation in walls or plasterboard ceilings, providing excellent aesthetic appearance. Can be used for air supply and exhaust.

SKU: ARPD0461

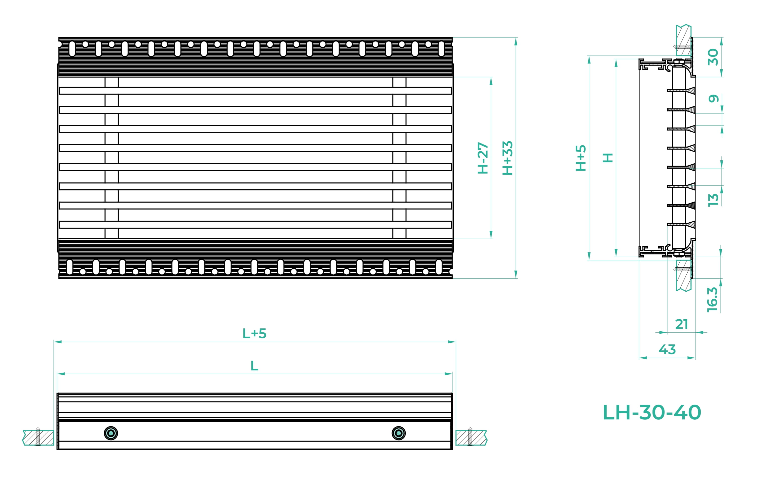

LH-30-40 – linear, single-row, non-adjustable gratings with a 0° angle of deflection of the plates

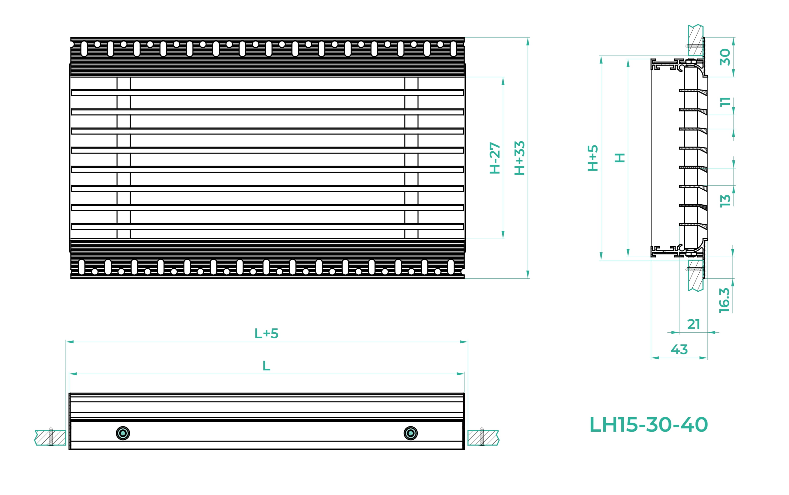

LH-15-30-40 – linear, single row, non-adjustable grilles with a plate deflection angle of 15°.

The design of this product consists of a high quality aluminum body with horizontal slotted openings. The frame of such a diffuser has ribs and holes for better jointing of the putty material with drywall. The lamellas are rigidly fixed, fixed and not putty, so the color of the diffuser should be selected to match the color of the ceiling or wall, depending on the place of its installation.

When manufacturing grilles, a protective decorative coating – powder painting – is used. The standard color is white (RAL-9016), but at the Customer’s request the body and lamellae can be painted in different colors according to the RAL palette

Production.
According to the LxH dimensions with a pitch of 5mm.

Example of an order for installation
LH-30-40 (RAL 9016) 1600x150h - 0° lamellae, white color.
LH-15-30-40+P (RAL 9016/perf 9005) 400x300h - lamellas at 15°, with perforation Kr 5.0, lattice color white, perforation color black.

Accessories
- can be supplied with a plenum for connection to the air duct

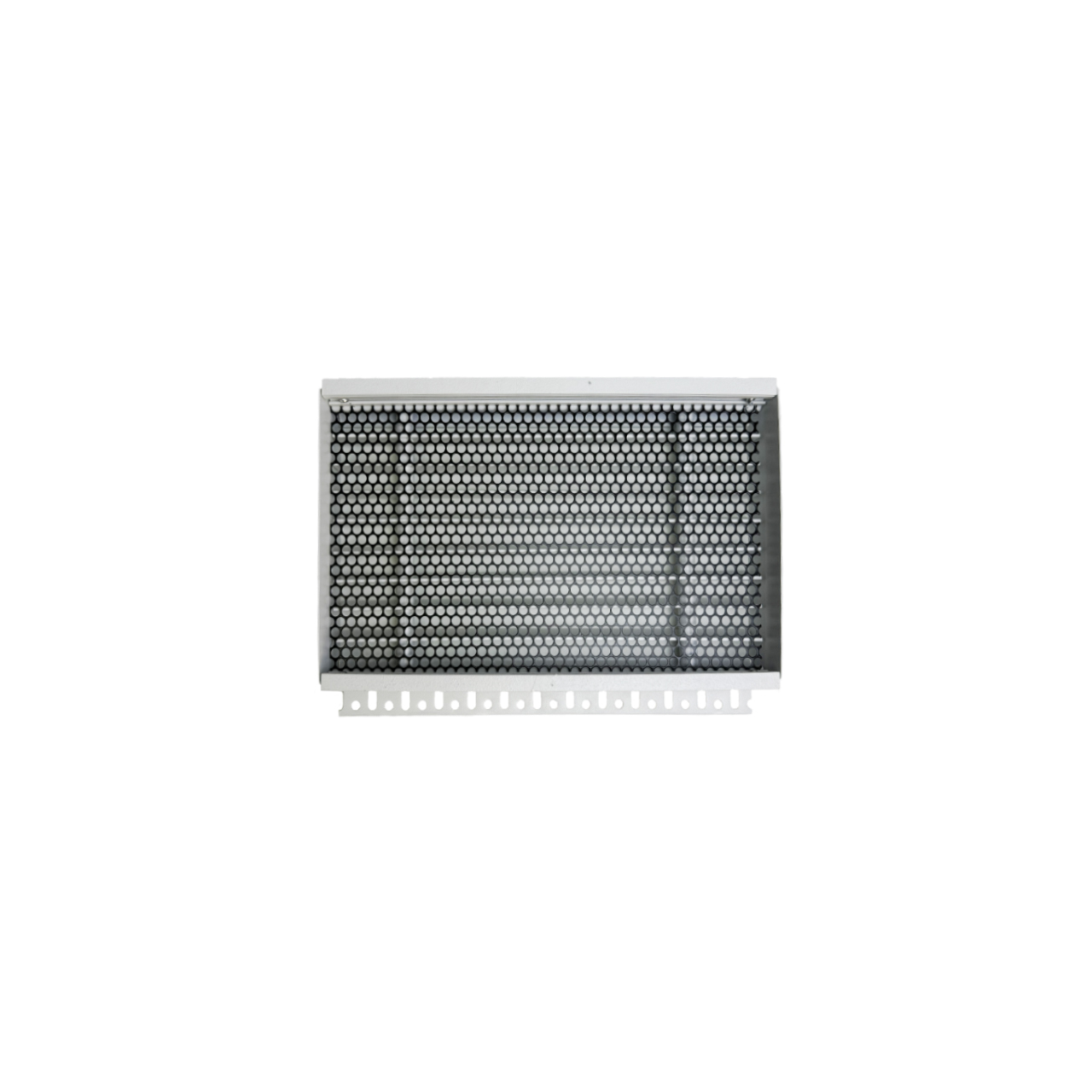

- can be equipped with perforation +P (can be painted in a different color from the grille)
- can be equipped with a damper +D (can be painted in a different color from the grille).
