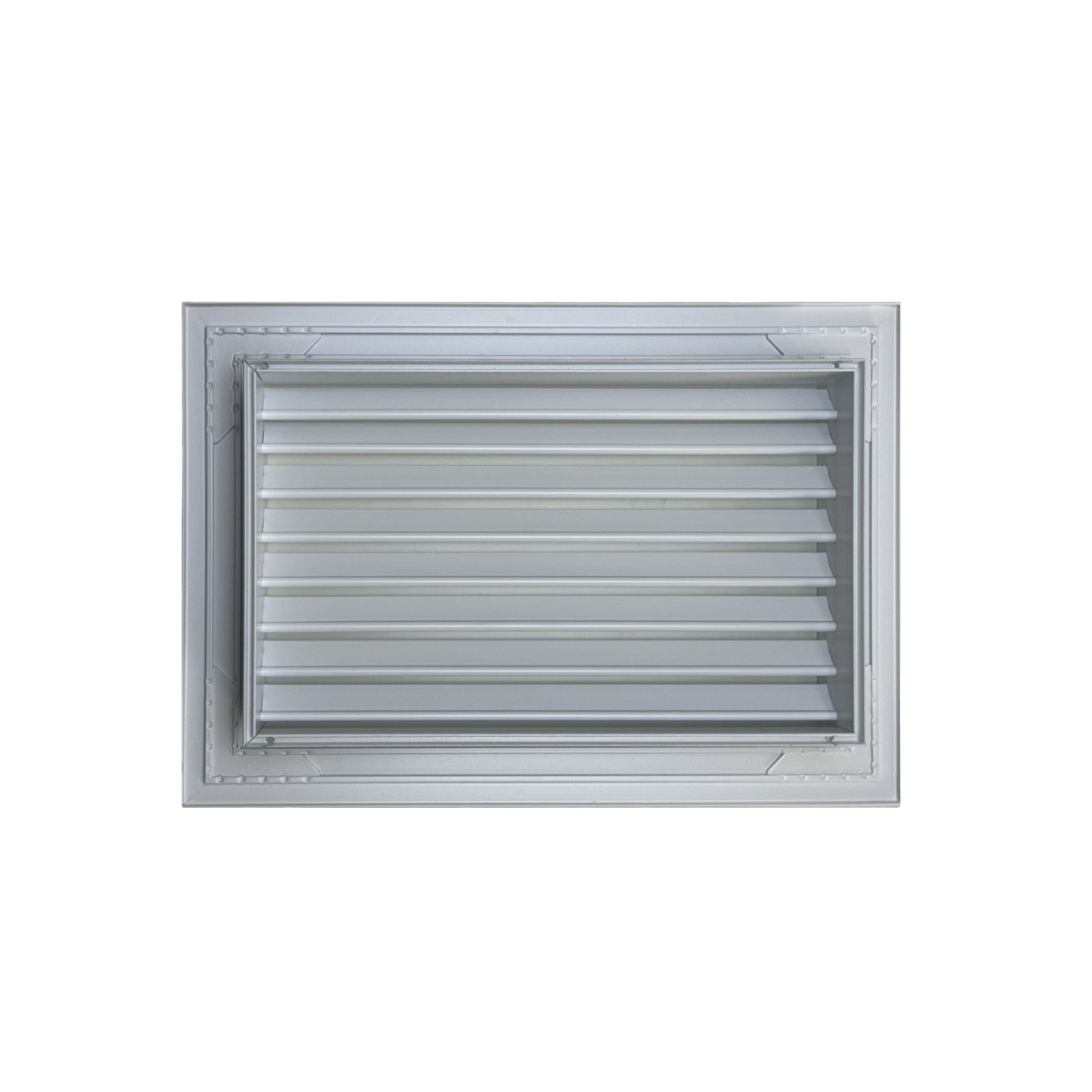

This type of grids is used in supply and exhaust ventilation and air conditioning systems, designed for installation in air ducts or construction openings of premises of different types and purposes.
SKU: ARPD0458
The grids are made of high quality aluminum profiles in the form of a frame, and consist of horizontal fixed plates, which are arranged at an angle of 45° and a pitch of 20 mm.
The profiles are coated with heat-resistant powder paint, which provides reliable protection against negative environmental factors and prevents premature wear of the product. The standard paint color is white, but at the Customer’s request it is possible to paint in another color according to the RAL catalog.
Manufacturing

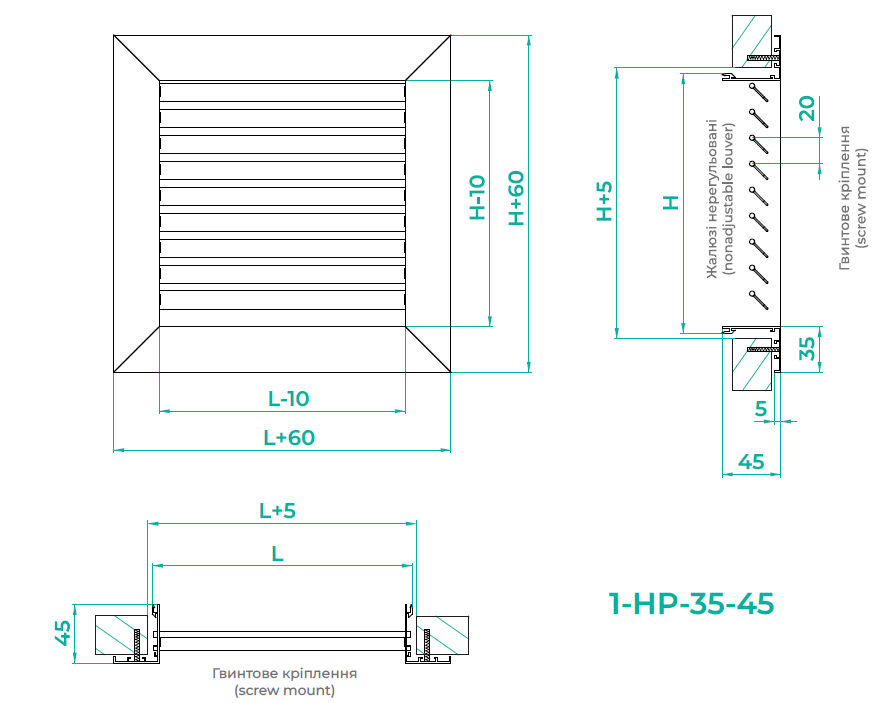

According to the planting dimensions LxH with a pitch of 5mm.
For dimensions L>500mm a separating profile is used.
Example of ordering and mounting
1-NP-35-45* (RAL-9016) 400x300h - mounting with a screw connection (mounting holes are located on the front side of the grille frame), color white.
Completion
- delivery with bird and rodent protection net (+C) is possible.
