POOLSTAR СOMPACT

POOLSTAR СOMPACT

Small-size units for dehumidification and ventilation of air in rooms with intensive moisture release. Used in small pools of private homes.

SKU: ARPD0048

CAPACITY

FROM 750 m3/h TO 3000 m3/h

FEATURES

  • This solution prevents condensation, corrosion, mould and fungus, prevents the destruction of load-bearing structures.

  • Double energy efficiency is provided by joint work of the plate recuperator and the heat pump.

  • The environment in which POOLSTAR operates is aggressive because chlorine is used in swimming pools. In addition, there is constant contact with humid air.

  • For additional corrosion protection, all interior panels are made of high-quality steel coated with anti-corrosion powder paint.

  • PoolStar Compact units are equipped with a set of automation that can be easily integrated into a single control system “Smart Home”.

ADDITIONAL OPTIONS

  • For rooms with limited space, it is possible to perform an energy-efficient supply and exhaust system with a heat pump and without a plate recuperator, as well as a supply unit with a heat pump and a mixing chamber.

  • Possibility to equip it with an electric heater

  • Painting in any colour of the RAL palette

BASIC CONFIGURATION

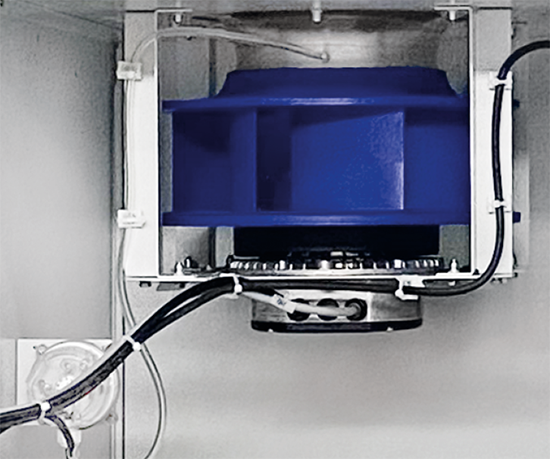

Energy efficient EC motor

Reduces total energy consumption by 60%. Corrosion-resistant aluminium foil coated with epoxy resin for aggressive environments.

It has a strong connection of plates thanks to double folding.

Pressure stability due to five-fold thickness of material

ENERGY EFFICIENT SCROLL COMPRESSOR

  • Innovative development of the built-in radial and axial coordination of scrolls.
  • Accurate calculation of load and sealing force optimizes operating sound pressure.
  • Built-in sound insulation. Built-in protection against high pressure and overload.

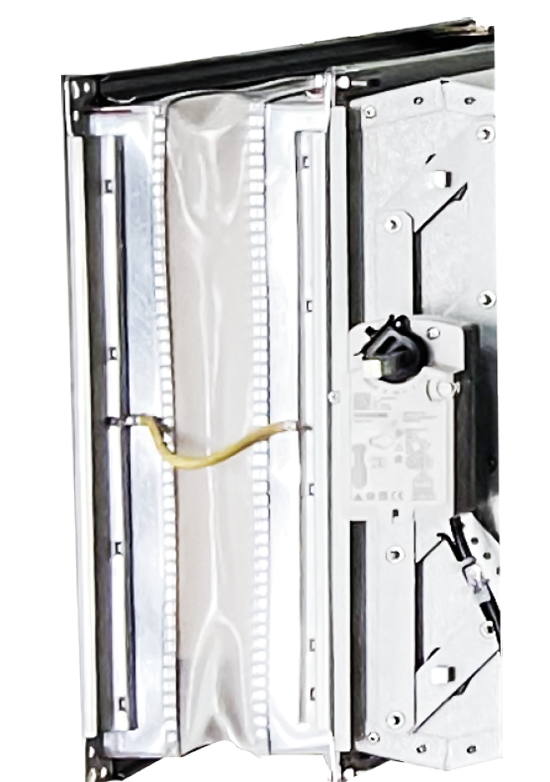

AIR DAMPER

Equipped with a turn-type drive and modulating control.

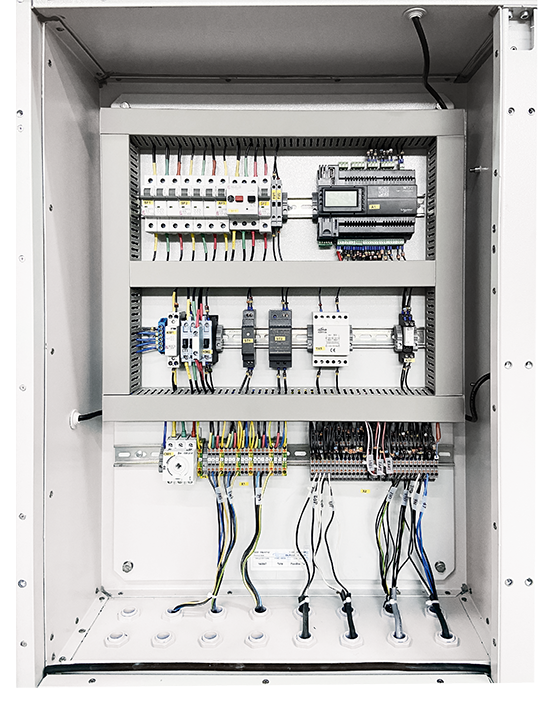

BUILT-IN AUTOMATION

Depending on the thermophysical characteristics of the room, automation selects the optimal mode of saving equipment for ventilation and dehumidification and maintenance of the set temperature in the room.
