HEPA BOX

HEPA BOX

Boxes for HEPA filters of a special class of filtration. Used in supply ventilation for air cleaning from contaminants of all types, including small particles with a diameter of 2.5 and 10 micron, and microorganisms. In clean rooms: air handling units in hospitals; operating rooms, intensive care units, wards for premature babies and appropriate adjoining rooms; pharmaceutical industry; genetic engineering and microbiology; food industry and other premises with high requirements for cleanliness class.

SKU: ARPD0270

FEATURES

  • Even distribution of air stream through system of filter inserts;

  • Compact design;

  • High operational safety;

  • Hermetic design, thanks to the U-shaped sealing profile;

  • Continuous work;

  • Thanks to the various frames, panels and housing profiles equipped with splitters, the filters can be adapted to the appropriate ceiling design.

  • Installation of air distributors is carried out by means of the central or 4-point locks;

  • 4 easy-to-use, non-slip clamping elements for higher filter density;

  • The case for HEPA filters with the overall depth of 78 mm;

  • The OCP case (without HEPA filter) can also be delivered for exhaust units, in this case measuring and testing devices are not required.

  • Measuring device supplemented with a U-shaped sealing profile;

  • Tube for test aerosol supply (concentration check);

  • Case for HEPA filters of classes E11 to H14, equipped with dry flat U-shaped profile with expanded polyurethane foam;

  • The filter frame is made of aluminum.

* The current characteristics of the equipment are available in the selection program “NormaSelect”. Do not forget to clarify them with your manager.

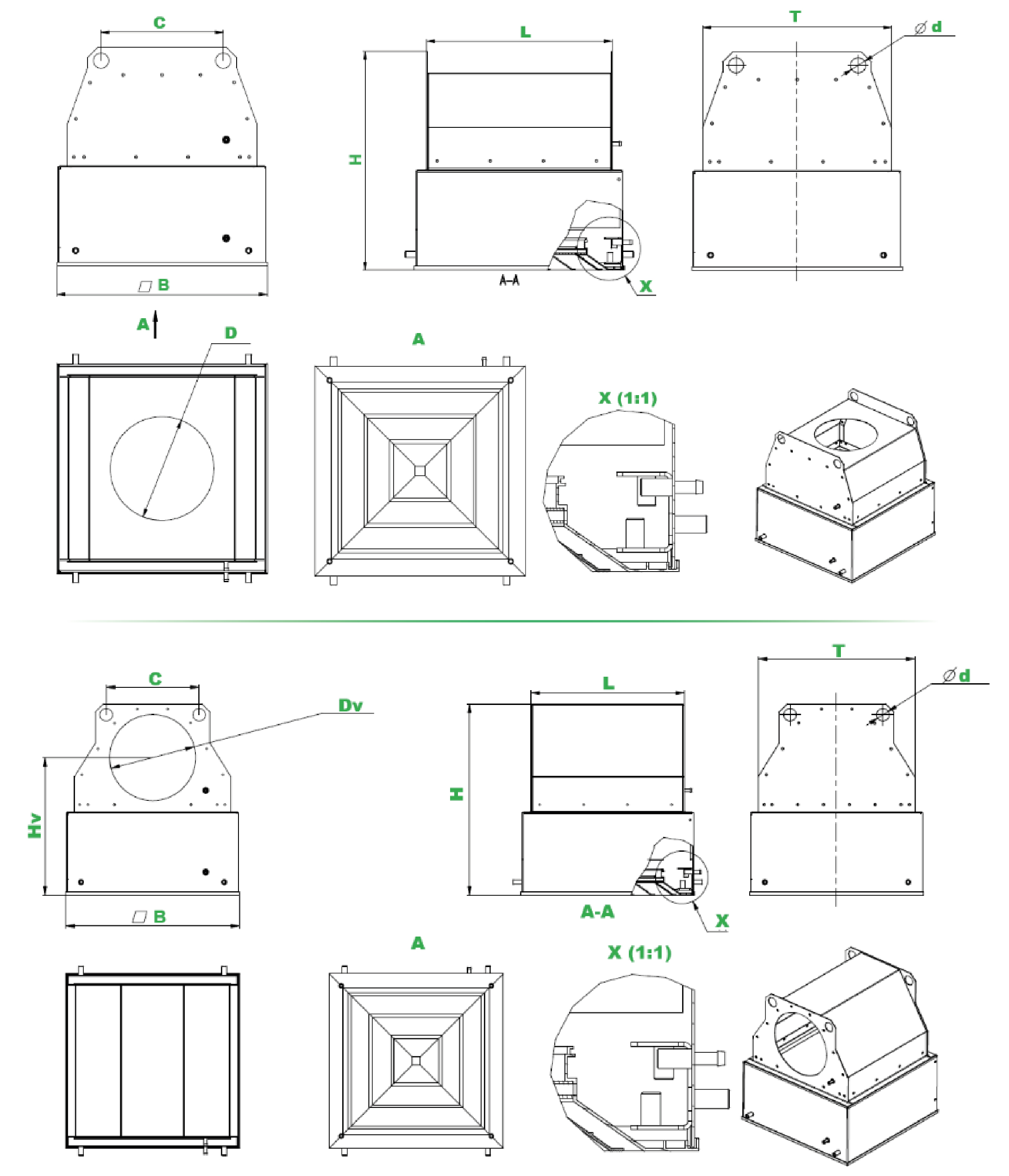

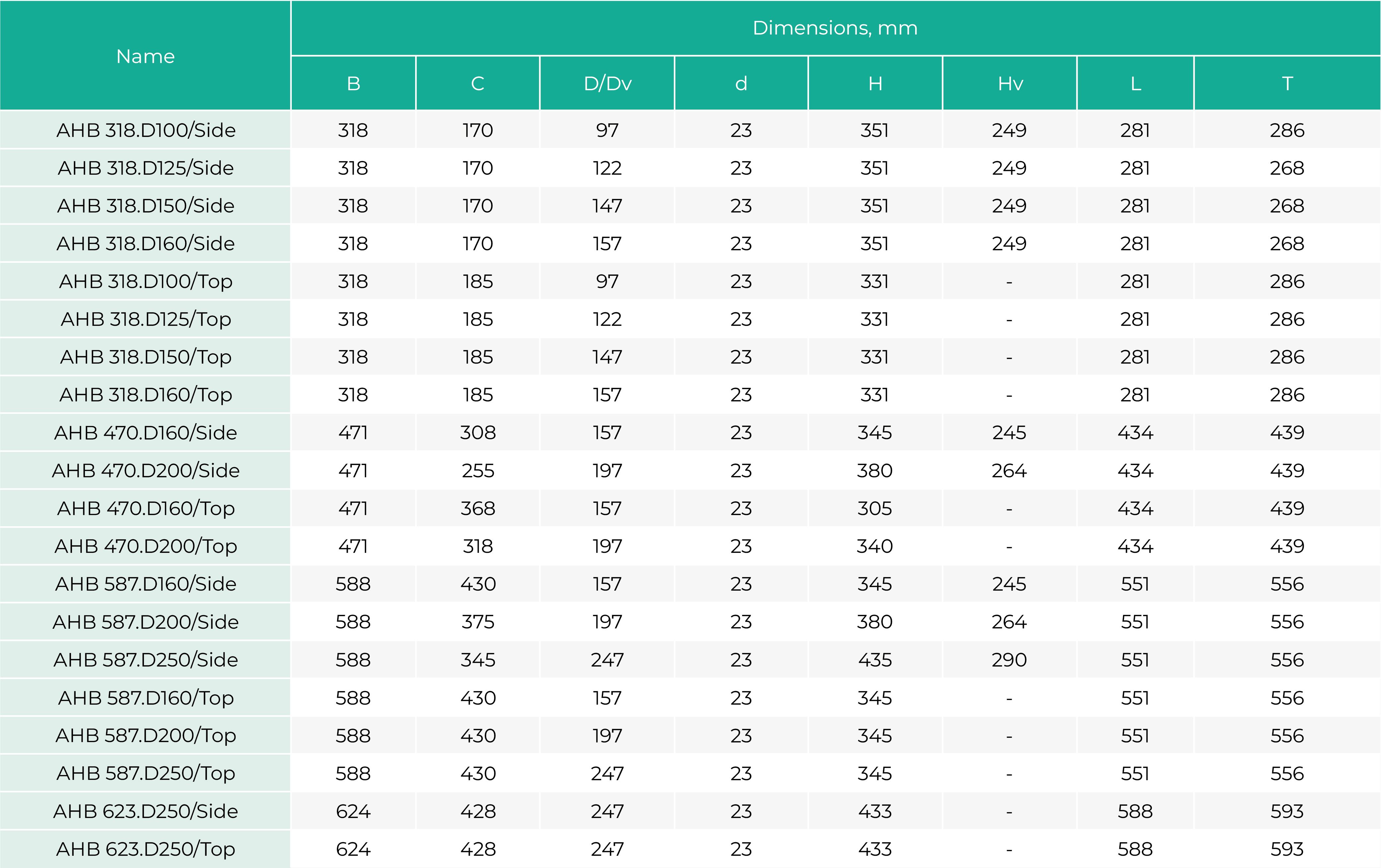

OVERALL DIMENSIONS

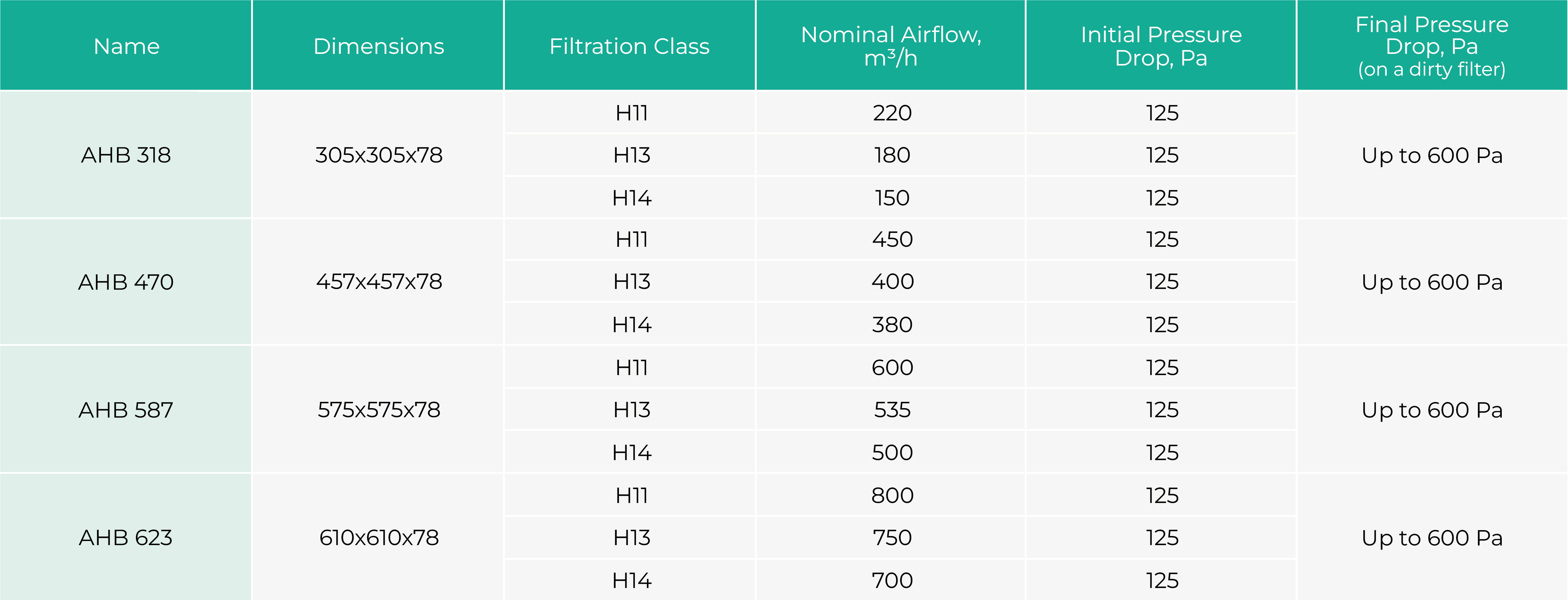

FILTER SPECIFICATIONS

* Current equipment specifications are available in the NormaSelect program. Do not forget to check them with your manager.
