Assignment
Diffusers with individually adjustable swivel deflectors, designed for horizontal air distribution. Designed for supply or exhaust of air by ventilation, air conditioning or air heating systems
Design and materials

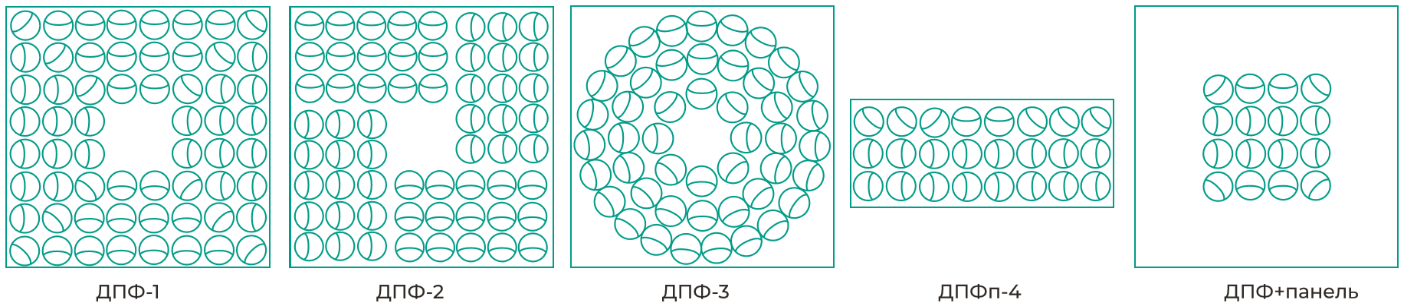

The ДПФ diffuser panel is made up of steel with holes and circular deflectors made of plastic that can be rotated for 360° and can be individually positioned at any angle, which means that a huge number of air distribution options can be set without changing the noise level, air flow rate or aerodynamic resistance.
Modifications:

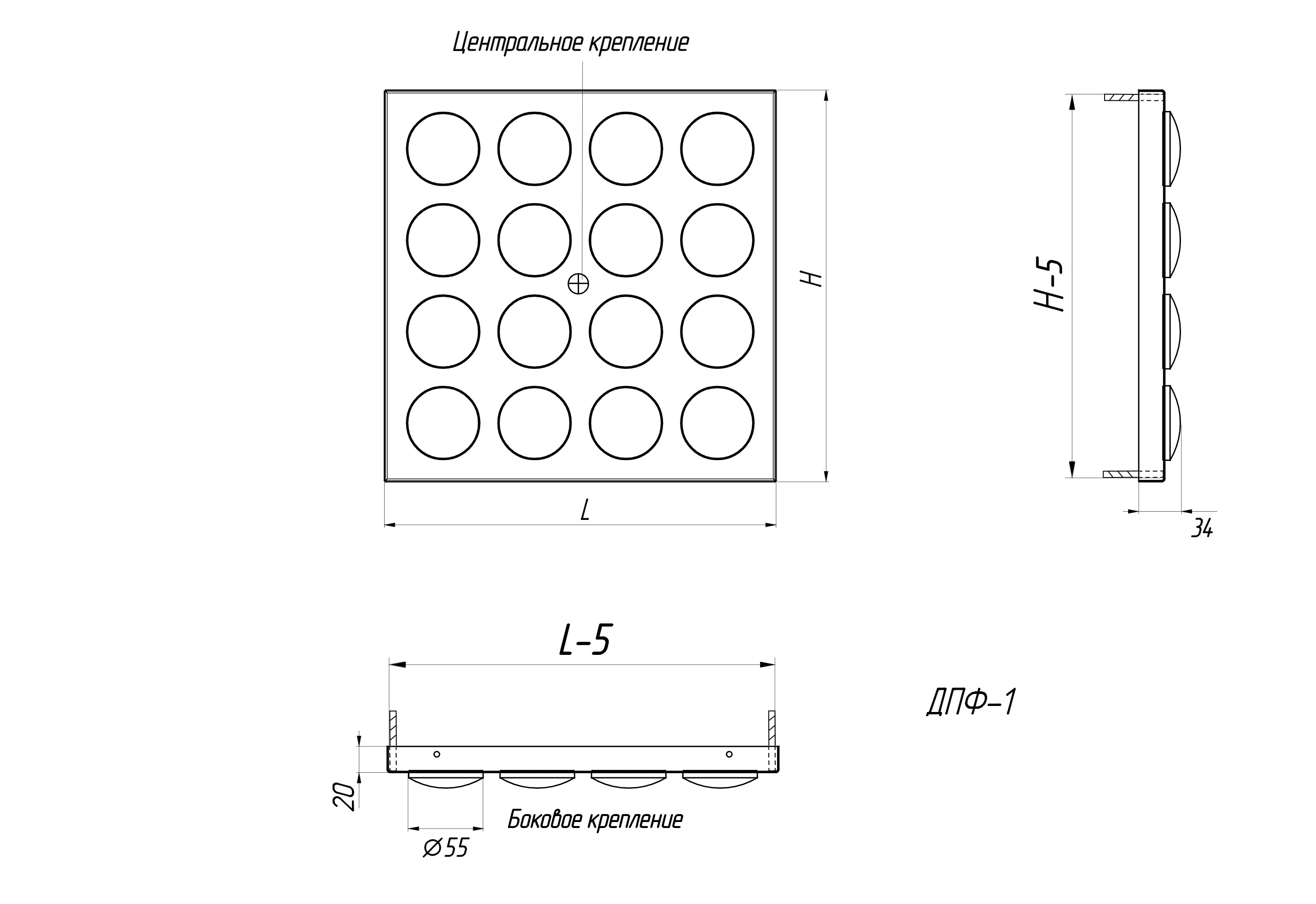

There are two types of mountings to connect the panel to the Plenum-box:
– standard mounting (hidden) with screw connection (mounting holes on the side shelves);
– central (one hole located in the centre of the diffuser), in such case it is necessary to order a Plenum-box with a central mounting bar (T-traverse), which will be fixed in the plenum and will have threaded holes. Connected with an M5 screw (included).
Diffusers are coated with heat-resistant powder paint, which provides reliable protection against negative environmental factors and prevents premature product wear. The standard color of painting is white, but at the customer request it is possible to paint a panel in another color according to the RAL catalogue, but the nozzles only in white or black.
